Your current position:Home >> Procucts >> Filter mesh >> Vapor-Liquid Filter

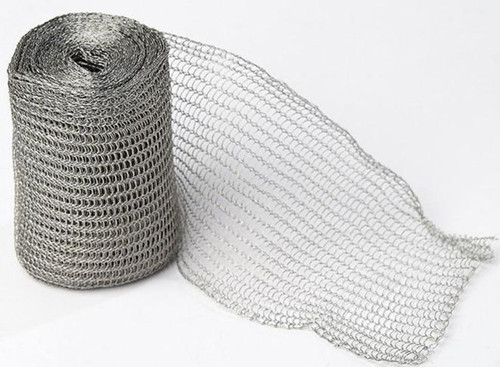

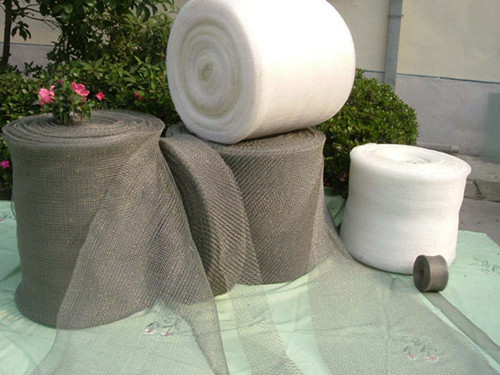

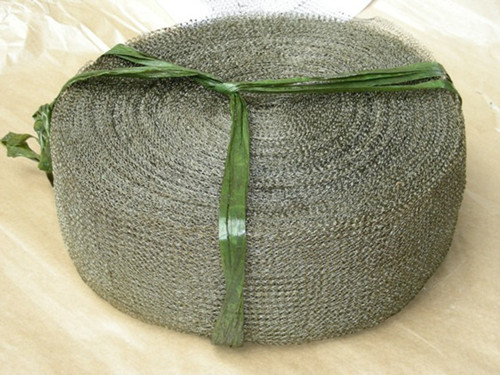

Vapor-Liquid Filter

2011-11-01 15:08:51 Source:Hebei BangDa Metal Products Co.,Ltd Browse:1435







1: The air filter cartridge adopts imported fiber as filter material ,comppunded with advanced folded technology,which makes the air filter with large filter area, small hole diameter, high efficiency,etc.

2: The material for cover and frame is galvanized plate, with perfect anti-corrosion and anti-rusty performance.





Description:

A screen filter is a type of filter using a rigid or flexible screen to separate sand and other fine particles out of water for irrigation or industrial applications. These are generally not recommended for filtering out organic matter such as algae, since these types of contaminants can be extruded into spaghetti-like strings through the filter if enough pressure drop occurs across the filter surface.

Function:

acid-resisting alkali-resisting  heat resisting, wear resisting,etc

Feature:

direct filtration
process simpleness
excellent air permeability
homogeneous and steady accuracywithout leakage
good regenerability
easy installing
high efficiency
Long service life

Application:

1) As a filter mesh cloth, use for mine, oil, chemical industry, food industry, pharmaceutical industry and mechanical manufacture.
2) As a Screening mesh cloth, applied to mining, stone and rock separating.
3) As a part for Vibrating screen machines, crusher machines etc
4) As a Decorative Mesh and Building Mesh, widely used in construction fence. Etc

Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth

Meshes Per Linear Inch

Diameter of Wire

Width of Opening

Open
Area, %

Inches

mm

Inches

mm

80 x 80

0.0070

0.18

0.006

0.15

19.4

80 x 80

0.0055

0.14

0.007

0.17

31.4

90 x 90

0.0055

0.14

0.006

0.15

25.4

100 x 100

0.0045

0.11

0.006

0.15

30.3

120 x 120

0.0040

0.10

0.0043

0.11

26.6

120 x 120

0.0037

0.09

0.005

0.12

30.7

150 x 150

0.0026

0.066

0.0041

0.10

37.4

165 x 165

0.0019

0.048

0.0041

0.10

44.0

180 x 180

0.0023

0.058

0.0032

0.08

33.5

180 x 180

0.0020

0.050

0.0035

0.09

41.1

200 x 200

0.0020

0.050

0.003

0.076

36.0

200 x 200

0.0016

0.040

0.0035

0.089

46.0

220 x 220

0.0019

0.048

0.0026

0.066

33.0

230 x 230

0.0014

0.035

0.0028

0.071

46.0

250 x 250

0.0016

0.040

0.0024

0.061

36.0

270 x 270

0.0014

0.040

0.0022

0.055

38.0

300 x 300

0.0012

0.030

0.0021

0.053

40.1

325 x 325

0.0014

0.040

0.0017

0.043

30.0

325 x 325

0.0011

0.028

0.0020

0.050

42.0

400 x 400

0.0010

0.025

0.0015

0.038

36.0

500 x 500

0.0010

0.025

0.0011

0.028

25.0

635 x 635

0.0009

0.022

0.0006

0.015

14.5
